Solar Desalination and Water Treatment Platform aims at the development of applied research in the fields of solar-driven water production and water treatment
- Objectives -
The Desalination and Water Treatment Platform aims at the development of applied research in the fields of solar-driven water desalination production and water treatment. It appears as a response to the growth of water needs, which requires developments in research areas to increase the amount of water available, proceeding in parallel with water quality treatment.
- Technologies -
Water Desalination

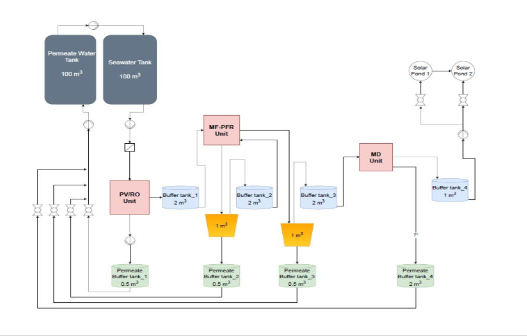

Water desalination pilot with clean water production of 1 m3 per day
Consists in a closed circuit composed by a reverse osmosis system, capable to operate waters with salinity levels up to 45g/l and 30% brine recovery rate, hybridised with a AGMD membrane distillation system with 10% brine recovery rate. A flow reactor (MF-PFR) as an intermediate process, for the process of selective removal and recovery of magnesium and calcium hydroxide, by chemical precipitation of brines resulting from reverse osmosis process.
Water Treatment
Solar Photoreactors
Water treatment technologies using direct solar irradiation, as solar photoreactors that use solar irradiation in solar photocatalysis processes (e.g. heterogeneous photocatalysis using TiO2 as catalyst or solar photo-Fenton).
The solar tubular photoreactor with high pathlength, tilted to 40º, equipped with a water pump, volumetric flowmeter, temperature sensors (PT100) and a water buffer tank, that operates in batch mode with water recirculation.
- Projects -
Sol2H2O
Funding: HORIZON-WIDERA-2021-ACCESS-03 Grant ID: 101079305
Duration: 01/12/2022 – 30/11/2025
Status: Ongoing
SFERA III
Funding: H2020-INFRAIA-2018-2020/H2020-INFRAIA-2018-1 Grant ID: 823802
Duration: 01/01/2019 – 31/12/2023
Status: Ended
EERES4WATER
Funding: INTERREG ATLANTIC AREA ID: EAPA_1058/2018
Duration: 01/04/2019 – 30/09/2022
Status: Ended
- Equipments -

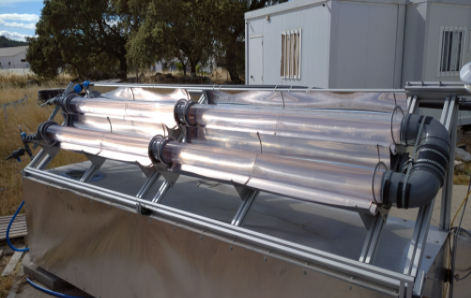

Tubular Photoreactor
With a high optical path, with an Aperture Area of 1.83 mm2 and a total volume of 135 L, of this around 62.32 L of volume is illuminated and allows operation in batch mode with water recirculation at a flow rate up to 120 L/min .
Status: Commissioned.
Production power: N/A
Capacity: N/A
SUV-A Kipp & Zonen UV Radiometer (315-400 nm) and a CMP11 Kipp & Zonen pyranometer (285 to 2800 nm)
To gather data on the Global iradiation on the plane (Gplane_i) are installed directly on the reactor.
Status: Commissioned.
Production power: N/A
Capacity: N/A

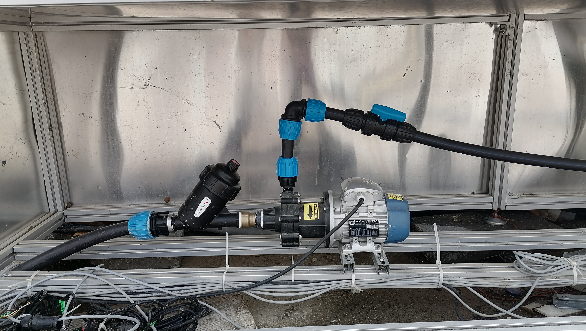

Magnetic drive centrifugal pump
Magnetic drive pump ADM 10, delivery rates up to 13 m3/h, with a motor of 0.75HP and 2800 RPM
Status: Commissioned.
Production power: N/A
Capacity: N/A

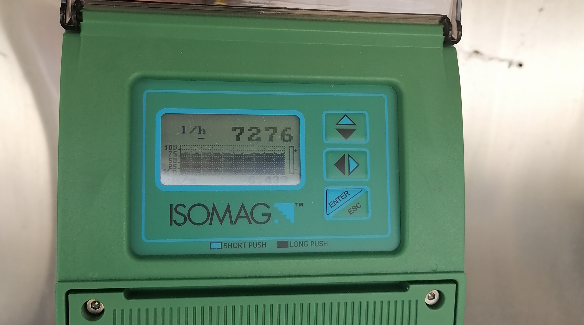

Electromagnetic flowmeter
Microflow sensor for magnetic flowmeters ISOMAG MS600, with a Flow rate of 0 to 12.500 l/h with a converter MV110 ISOMAG
Status: Commissioned.
Production power: N/A
Capacity: N/A
- Services -
Evaluation of water/wastewater quality and treatment efficiency, including chemical and microbiological analysis, according to European Directives
Physical access to infrastructure: Y
Estimated number of weeks available per year: 48
Evaluation of the energy efficiency of a solar-based water/wastewater treatment;
Physical access to infrastructure: Y
Estimated number of weeks available per year: 48
Technical support in hosting a prototype or pilot unit (TRL<7) for water ∕wastewater treatment using solar energy, in the UÉvora facilities for evaluation ∕validation of the technology
Physical access to infrastructure: Y
Estimated number of weeks available per year: 48
Assessment of new solar reactor components and of new catalysts or oxidants for water treatment processes, taking advantage of the existing photoreactor
Physical access to infrastructure: Y
Estimated number of weeks available per year: 48
Design and sizing of new electric energy storage systems for water pumping systems
Physical access to infrastructure: N
Estimated number of weeks available per year: 48
